AVC-2-CC

General Features

To complement the wide range of interface modules for dedicated Avionics Databuses and Networks, AIM offers a range of Carrier modules for the use of AIM or any 3rd Party PMC and XMC module on various backplanes.

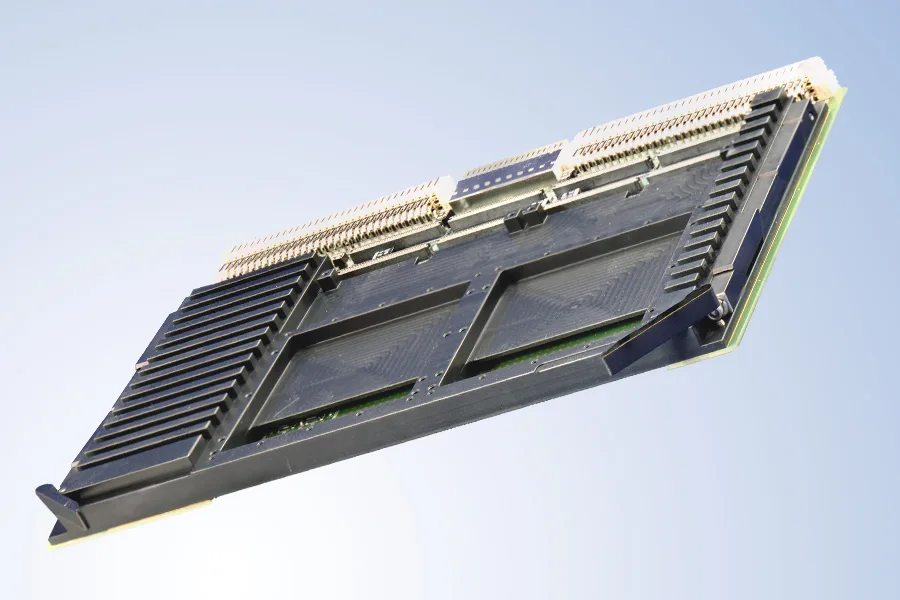

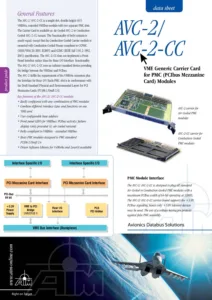

The AVC-2-CC is a single slot, double height (6U) VME64x, extended VMEbus module with two separate PMC slots for conduction cooled PMC modules.

• Mounted with Conduction Cooled Frame compliant to CCPMC (ANSI/VISA 20-2001, R2005) and CCMC (IEEE Std 1101.2-1992, 2001) specification
• Not implementing a Front Panel Interface rather than the Rear-I/O Interface functionality
• Fulfills the requirements of the VME64x extension plus the interface for Rear I/O
• The PMC slot is in conformance with the draft standard physical and environmental layers for PCI mezzanine cards (P1386.1/Draft 2.4)
• Combine different interface types and functions on one VME card
• Easily configured with any AIM PMC databus module: AFDX®/ARINC664P7, ARINC429, MIL-STD-1553, ARINC825 or any standard 3rd party PMC module

Carrier Functionality on further Form Factors

• User configurable base address
• Front panel LED’s for VMEbus/PCIbus activity/failure display (only provided @ air cooled variant)
• Fully compliant to VME64x – extended VMEbus
• Hosts PMC modules designed to PMC standard P1386.1/Draft 2.4
• ANSI VITA 47 qualification on request
• Includes C/C++ software support library source code
